Socket Weld Fittings
CARBON, ALLOY, STAINLESS STEEL FORGED SOCKET WELD FITTINGS
MANUFACTURER/EXPORTER of HIGH QUALITY SOCKET WELD FITTINGS – ASME B16.11

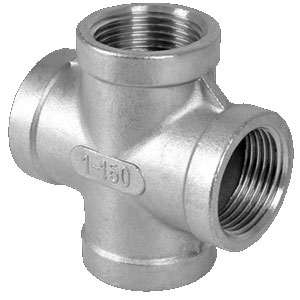

SOCKET WELD ELBOW, SOCKET WELD TEE, SOCKET WELD CROSS, SOCKET WELD UNION, SOCKET WELD COUPLING
It gives us great pleasure to introduce ourselves as one of the leading manufacturer, exporter, and supplier of forged socket weld fittings manufactured in accordance to ASME B16.11. Forged socket weld fittings are available ex-stock in all major stainless steel grades (ASTM A182 F316L, F304L), carbon steel and alloy steel grades. We offer various types of socket weld fittings including socket weld elbow, socket weld tees, socket weld cross, and more. Socket weld fittings are widely used in piping systems across major industries such as petrochemicals, power generation, shipbuilding, dairy industry, breweries, waste water treatment, chemical, pharmaceuticals, and others.
Socket weld fittings are available in pressure ratings of class 3000, 6000 and 9000. We are constantly adding to our diverse product range in order to better serve our valued customers.
High Pressure Socket Weld Forged Fittings
| Pressure Class | 3000LBS, 6000LBS, 9000LBS |
| Products | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert |
| Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
Forged Pipe Fittings Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Forged Socket Weld Stainless Steel Fittings
Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
The material for forged stainless steel fittings conforms to ASME A182
The dimensions for forged stainless steel fittings conform to ASME B16.11
Forged Socket Weld Carbon Steel Fittings
Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. On special requests, we can also, make custom marking on our products.
Quality Assurance
At Metro Forge , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
